GZ4260 CNC Steel Metal Cutting Bandsaw high quality for sale

1 Set
MOQ
$9,500.00(1 - 4 Sets) $8,500.00(>=5 Sets)
Price
GZ4260 CNC Steel Metal Cutting Bandsaw high quality for sale
Features Gallery Product Description Request A Quote
Features
Specifications
Condition: New
Machine Type: Band Saw Machine
Video Outgoing-inspection: Provided
Machinery Test Report: Provided
Marketing Type: New Product 2021
Cutting Capacity (mm): 600mm
Blade Speed (m/min): 28, 52, 74, 85 M/min
Saw Blade Tension Method: Hydraulic
Warranty Of Core Components: 1 Year
Core Components: Gear
Showroom Location: None
Warranty: 1 Year
Weight (KG): 2400
Applicable Industries: Machinery Repair Shops, Manufacturing Plant
Key Selling Points: Competitive Price
Motor Power (kw): 5.5kw
Hydraulic Motor Power (kW): 1.5kw
Name: GZ4260 CNC Steel Metal Cutting Bandsaw
Cutting Capacity: 600mm
Blade Size: 6300x41x1.3mm
Structure: Big Band Saw
Clamping Type: Hydraulic
Saw Blade Tension: Hydraulic
Function: Band Saw For Metal Cutting
Usage: Metal Bar And Pipe Cut Off
Vice Clamp: Hydraulic Control
Application: Industrial Metal Cutting
After-sales Service Provided: Free Spare Parts, Online Support
After Warranty Service: Video Technical Support, Online Support, Spare Parts
Local Service Location: None
Basic Infomation
Payment & Shipping Terms
Packaging Details: Plywood case
Supply Ability: 50 Set/Sets per Month
Product Description

Products Description

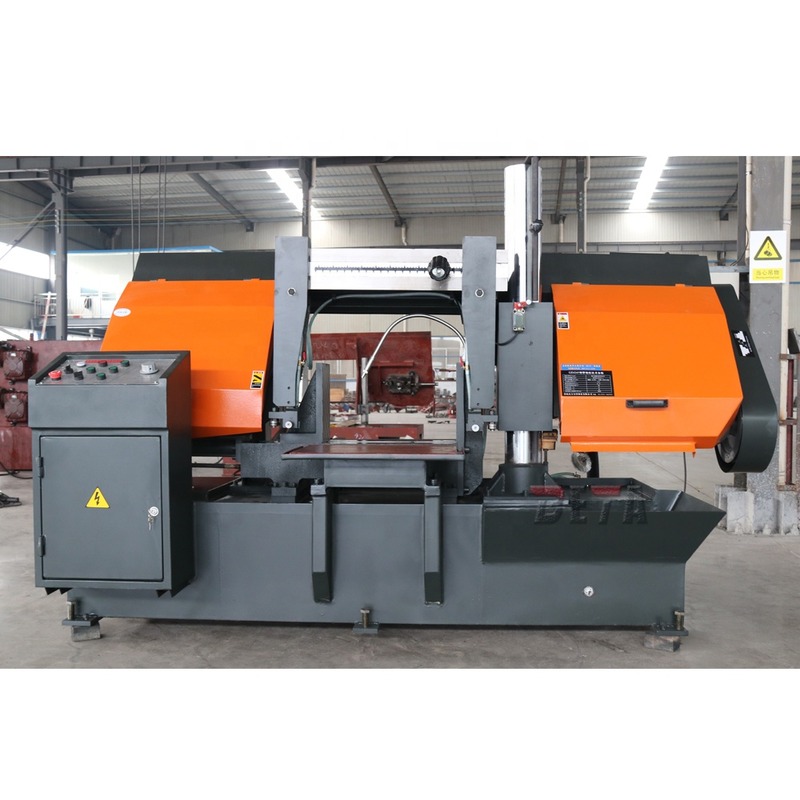

GZ4260 CNC Steel Metal Cutting Bandsaw
Product Parameters
Model
GZ4260
Cutting capacity
Round 600mm, square 600*600mm
Blade size
6300*41*1.3 mm
Blade cutting speed
28/52/74/85 m/min
Main motor power
5.5 kw
Oil pump motor power
1.5 kw
Coolant pump motor power
0.09 kw
Clamping type
Hydraulic/double vice clamping
Saw blade tension
Hydraulic
Main drive structure
Worm gear
Net weight
2400 kg
Overall dimension
3000*1400*1850 mm
Features: (1) The double-cylindrical and double-cylinder structure and the extra-long sliding sleeve (with self-lubricating bearings inside) form a stable sawing structure to ensure guiding accuracy and stable and reliable sawing; (2) Saw band guide device is double-guided by hard alloy and rolling bearing, and the design is reasonable, which effectively extends the life of the saw band. (3) The performance of high-performance worm gear reducer, strong power, high reliability, precise balance correction, reduce noise and vibration. (4) The unique hydraulic system design, the lowering speed is stable, this precision system can prevent abnormal damage of the saw blade, and achieve the ideal sawing effect. (5) A large-stroke electric roller rack is optional, which can quickly realize the movement and positioning of the workpiece, reduce the labor intensity of the workers, and improve the work efficiency. (6) Optional frequency converter control of cutting speed and automatic chip removal device.
Details Images

Hydraulic clamping makes it easy to tighten the material.

The transmission mechanism of the sawing machine is precisely balanced and corrected to reduce vibration to ensure that the saw belt is not easy to break or pull the teeth.
